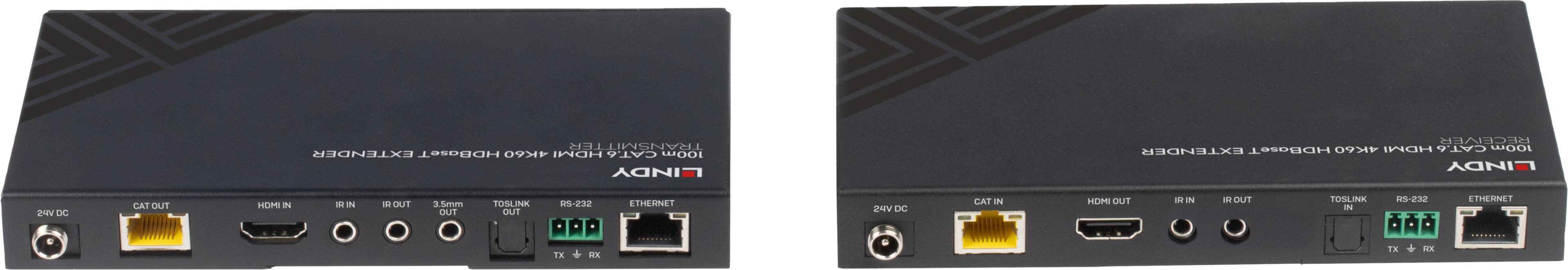

The HDMI extender consists of a transmitter and a receiver unit. It allows the distance to be extended up to 100 m for the HDMI signal. This is an optimal solution if a standard HDMI cable length is not sufficient.
Supports resolutions up to 3840 x 2160 at 60 Hz 4:4:4 8 bit
Transmitter and receiver are connected using an S/FTP Cat6 RJ45 cable
PoC feature for remotely supplying the receiver with power via a Cat6 cable from the transmitter
Supports HDMI audio, analogue audio via jack socket 3.5 mm, digital via Toslink
Connectors: Transmitter: 1 x HDMI(A) female, 1 x RJ45 female, 2 x IR, 1 x 3.5 mm audio jack,1 x Toslink female, 1 x power supply connection, Receiver: 1 x HDMI(A) female, 1 x RJ45 female, 2 x IR female, 1 x Toslink female, 1 x 3-pin female (For RS232)
Includes: 1 x AC adapter (UK, EU, US & AUS), 1 x IR transmitter cable (1.5 m), 1 x IR receiver cable (1.5m), 2 x Terminal block 3-pin female - female, 4 x mounting bracket (for table and wall mounting), 8 x screws
