Eaton Electric

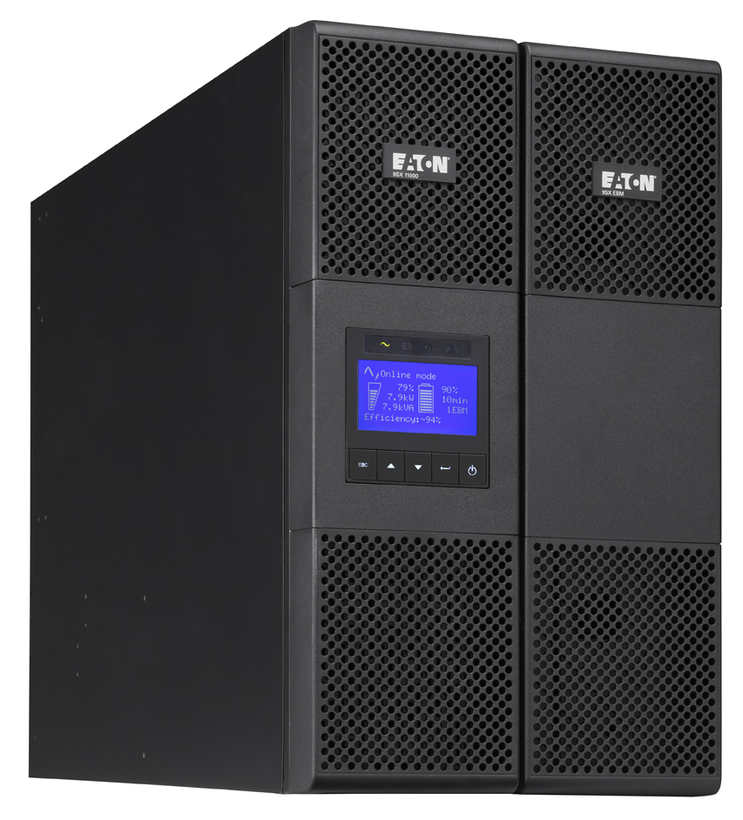

Eaton 9SX 8kVA UPS 230V

Chassis type: Tower - Effective power: 7200 W - Apparent power (VA): 8000 VA - Technology: Double conversion (online)... more
(Review this product)

€5,390.00

Gross price: €6,521.90 incl. €1,131.90 VAT excl.

Order by 16:00 for expected delivery on 2. April.

Only a few items left in stock.

Tower UPS VFI-SS-111 system for 230 V networks (Optional 6 U rack mounting kit) LCD control panel USB and serial interfaces Connection for EPO/RPO (network and relay card optional) Internal, automatic bypass Input: Hardwired (single-phase) Output: Hardwired (single-phase) Important: the UPS must be connected by a professional electrician. Recommended fuses and wire gauge: 1-phase input: 50 A, 10 mm²

Eaton 9SX 8kVA UPS 230V

Product
Product typeUPS for servers / network
Manufacturer’s warranty2-year exchange service (see manufacturer's website for details)
Performance
Apparent power (VA)8000 VA
Effective power7200 W
Max. runtime (50% load)15.0 min.
Max. runtime (70 % load)10.0 min.
Max. runtime (100 % load)4.0 min.
General
TechnologyDouble conversion (online)
Battery typeVRLA (lead acid)
Battery life3 - 5 year(s)
DurationRenewable
Network
SNMP / managementOptional
Physical properties
Chassis typeTower
Dimensions (W x H x D)440 x 260 x 700 mm
Weight84.0 kg
Country variant
Country variantEurope

Datasheets

Eaton 9SX 8kVA UPS 230V - Data sheet 1

File type: PDF

File size: 876.83 KB
