Eaton Electric

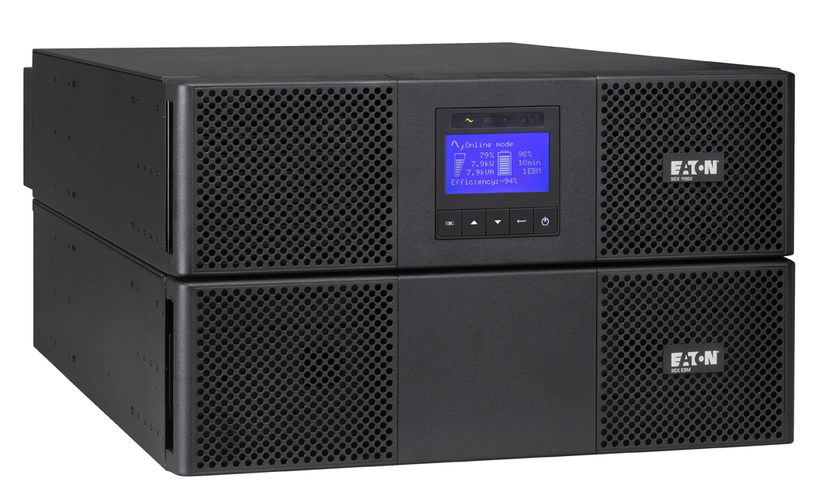

Eaton 9SX 8kVA Rack UPS 230V

Chassis type: Tower / rack convertible - Effective power: 7200 W - Apparent power (VA): 8000 VA - Technology: Double conversion (online) - Rack units: 6 U... more
(Review this product)

€4,683.00

Gross price: €5,666.43 incl. €983.43 VAT excl.

Order now and we’ll ship this item as soon as it becomes available.

Currently out of stock.

Tower and rack UPS VFI-SS-111 system for 230 V input With 6 U rack rails USB and serial interfaces Connection for EPO/RPO (network and relay card optional) Internal, automatic bypass Input: Hardwired (single-phase) Output: Hardwired (single-phase) Runtime (7.2 kW load): approx. 4 min Runtime (5 kW load): approx. 8 min Runtime (4 kW load): approx. 11 min Important: the UPS must be connected by a professional electrician. Recommended fuses and wire gauge: 1-phase input: 50 A, 10 mm²

Eaton 9SX 8kVA Rack UPS 230V

Product
Product typeUPS for servers / network
Manufacturer’s warranty2-year exchange service (see manufacturer's website for details)
Performance
Apparent power (VA)8000 VA
Effective power7200 W
General
TechnologyDouble conversion (online)
Battery typeVRLA (lead acid)
Battery life3 - 5 year(s)
DurationRenewable
Network
SNMP / managementOptional
Physical properties
Chassis typeTower / rack convertible
Rack units6 U
Dimensions (W x H x D)440 x 260 x 700 mm
Weight84.0 kg
Country variant
Country variantEurope

Datasheets

Eaton 9SX 8kVA Rack UPS 230V - Data sheet 1

File type: PDF

File size: 876.83 KB
