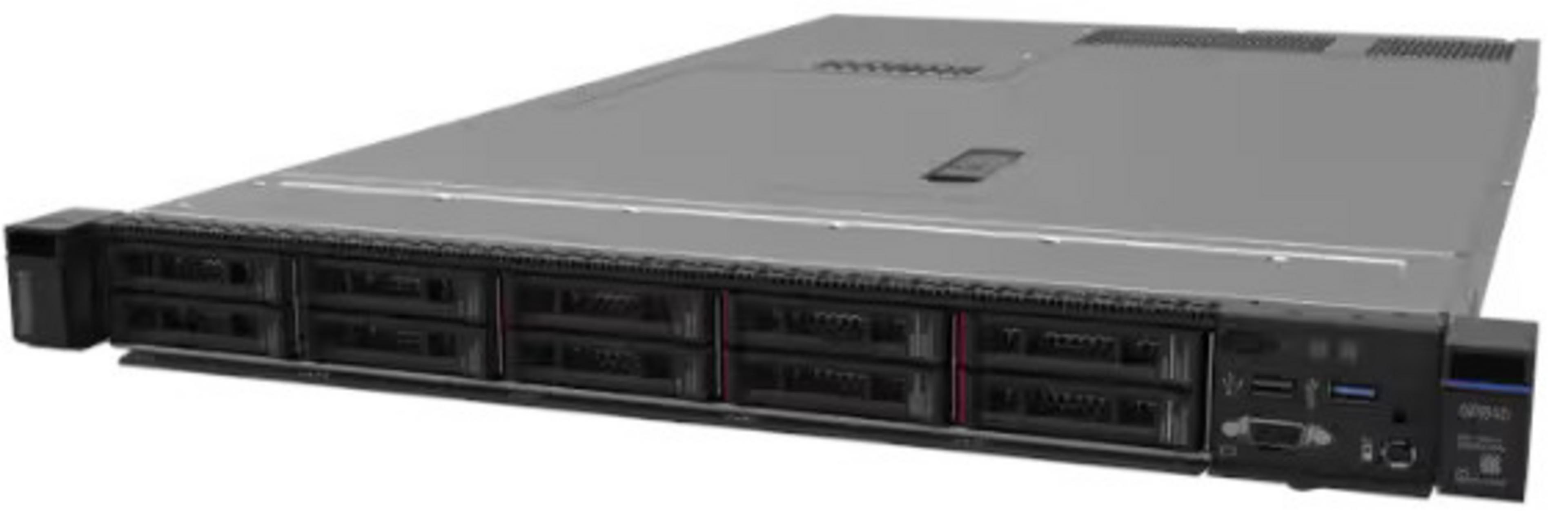

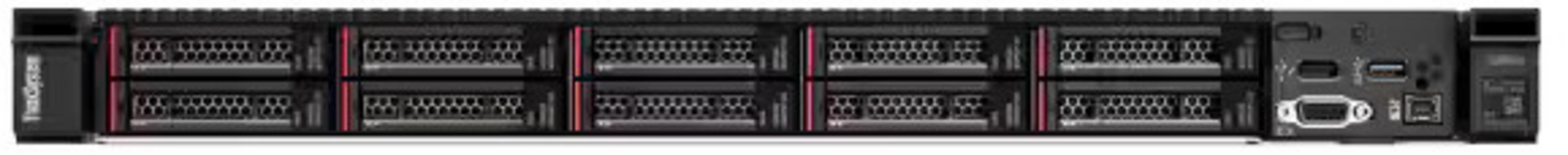

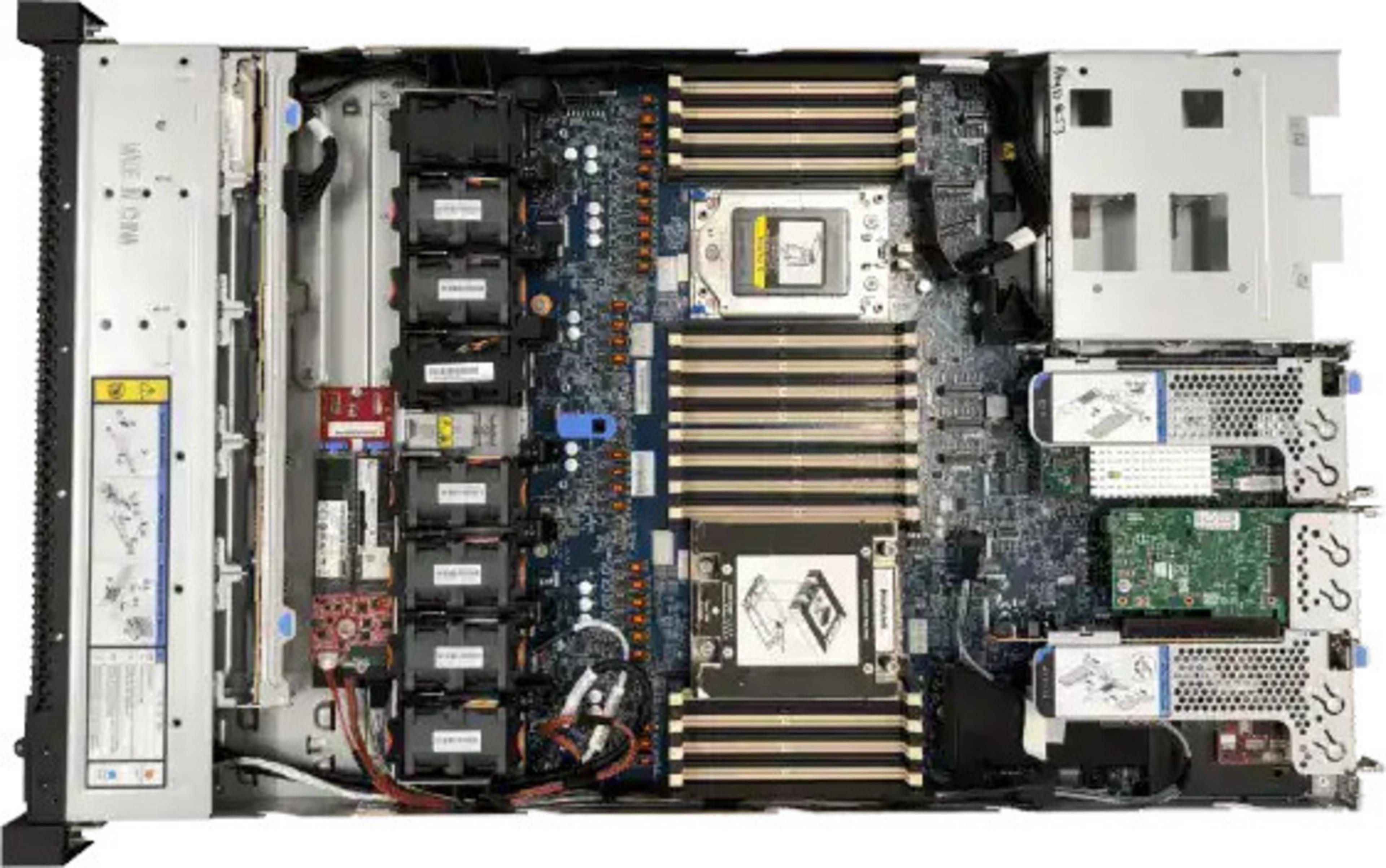

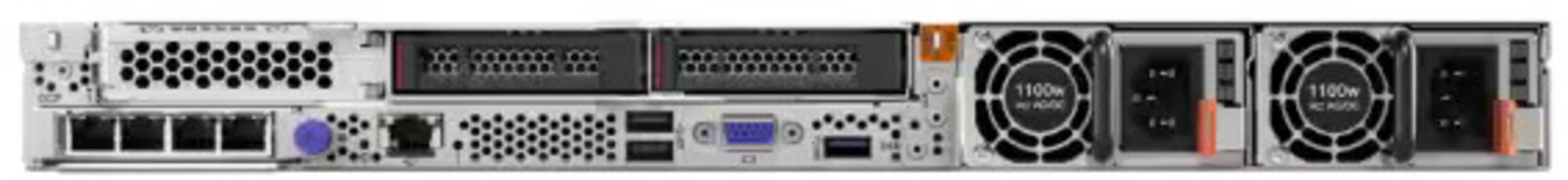

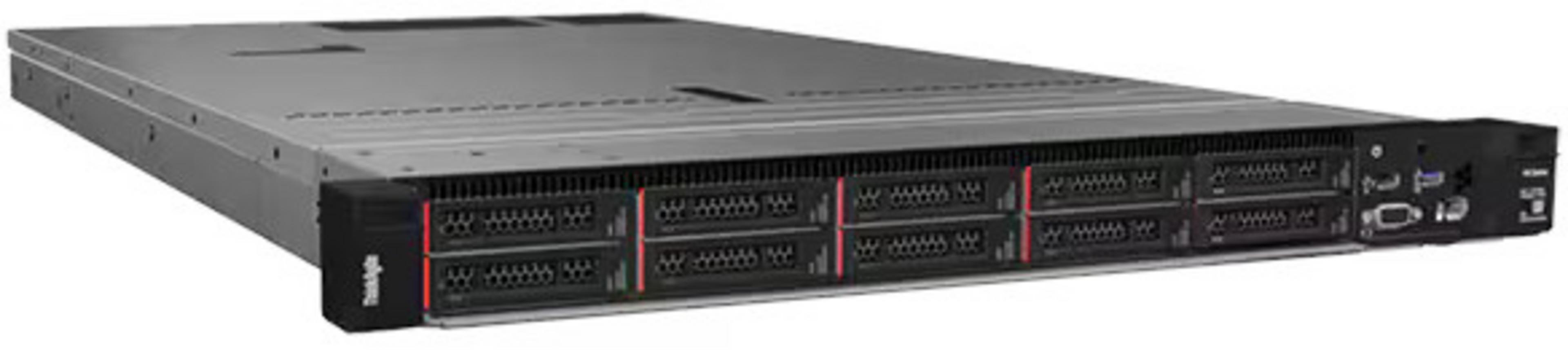

Lenovo ThinkSystem SR645 Server
Chassis type: Rack - Rack units: 1 U - Server category: Dual processor - Processor family: AMD EPYC - RAM: 32 GB... more
The product is no longer available.
Please note:
Components and accessories must be selected to work together. Additional parts/components may be required for installation/use.
Please have your custom configuration verified by our specialists before placing your order. Otherwise, we cannot accept claims for any issues resulting from the chosen configuration.
Lenovo ThinkSystem SR645 Server
| Product | |
|---|---|
| Product type | Server |
| Manufacturer’s warranty | 3-year limited on-site service (see manufacturer's website for details) |
| Physical properties | |
| Chassis type | Rack |
| Rack units | 1 U |
| Dimensions (W x H x D) | 440 x 43 x 773 mm |
| Processor | |
| Server category | Dual processor |
| Processor family | AMD EPYC |
| Processor model | AMD EPYC 7303, 2.4 GHz |
| CPU cores | 16 |
| Clock speed | 2.4 GHz |
| No. of processors | 1 |
| Storage | |
| Compatible storage media | 6.4 cm (2.5") SAS |
| HDD | Optional |
| HDDs (built-in / max.) | 0 / 8 |
| Memory | |
| RAM | 32 GB |
| RAM type | DDR4 |
| RAM modules (built in / max.) | 1 / 32 |
| RAM (max.) | 8 TB |
| Drives | |
| Drives | - |
| Connectivity | |
| Connectors | 1 x RJ45, 1 x USB 2.0 Type-A, 1 x VGA, 4 x USB 3.1 Type-A |
| Operating system | |
| Operating system | - |
| Supported operating systems | Microsoft Windows Server 2016, Microsoft Windows Server 2019, Microsoft Windows Server 2022, Red Hat Enterprise Linux 8.3, Red Hat Enterprise Linux 8.4, Red Hat Enterprise Linux 8.5, Red Hat Enterprise Linux 8.6, Red Hat Enterprise Linux 8.7, Red Hat Enterprise Linux 8.8, Red Hat Enterprise Linux 8.9, Red Hat Enterprise Linux 9.0, Red Hat Enterprise Linux 9.1, Red Hat Enterprise Linux 9.2, Red Hat Enterprise Linux 9.3, SUSE Linux Enterprise Server 12 SP5, SUSE Linux Enterprise Server 15 SP2, SUSE Linux Enterprise Server 15 SP3, SUSE Linux Enterprise Server 15 SP4, SUSE Linux Enterprise Server 15 SP5, VMware ESXi 6.7 U3, VMware ESXi 7.0 U2, VMware ESXi 7.0 U3, VMware ESXi 8.0, VMware ESXi 8.0 U1, VMware ESXi 8.0 U2 |
| Features | |
| Motherboard chipset | CPU-integrated |
| RAID controller | RAID 9350-8i |
| RAID levels | 0, 1, 10, 5 |
| Graphics | |
| Graphics chip | Matrox G200 |
| Performance | |
| PSUs (built in / max.) | 1 / 2 |
| Effective power | 1100 W |
| Sustainability | |
| Sustainability certifications | ENERGY STAR 3.0 |
| Version | |
| Version | Europe |
| Sustainability | |
|---|---|
| Sustainability certifications | ENERGY STAR 3.0 |
